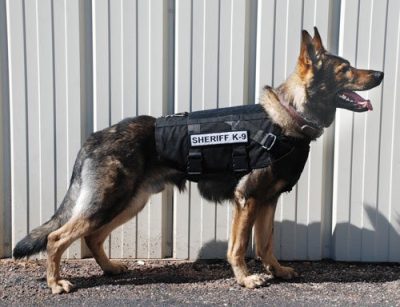

Ray Allen Modular Ballistic Vest – Professional K9 Ballistic Protection
The Ray Allen Modular Ballistic Vest is a specialized protective vest designed for working dogs operating in environments where ballistic hazards may be present.
Handcrafted in Colorado Springs, USA, this vest combines protective armor panels with a durable outer shell and an adjustable harness-style construction.
The Ray Allen Modular Ballistic Vest is available in Type II and Type III-A ballistic performance configurations, according to Ray Allen Manufacturing.
Its streamlined design prioritizes vital-organ coverage while considering weight, heat retention and freedom of movement.
The result is professional protective equipment developed for handlers who require purpose-built K9 body armor.
Why Choose the Ray Allen Modular Ballistic Vest?
The Ray Allen Modular Ballistic Vest combines protective construction with practical features for everyday handling and equipment management.
Key advantages include:
- Type II and Type III-A ballistic configurations
- Protection designed around the dog’s vital organs
- Durable 1000D Cordura nylon outer shell
- Pack-cloth lining for easier cleaning
- Removable ballistic armor panels
- Rear V-ring individually rated to 2,500 lb
- MOLLE attachment strips for compatible equipment
- VELCRO® areas for identification patches
- Adjustable straps for a secure fit
- Regular and Large sizing options
- Heavy-Duty configurations with additional handling features
- Handmade in the USA
These features make the vest a comprehensive protective solution for suitably trained working dogs.
Type II and Type III-A Ballistic Protection
The Ray Allen Modular Ballistic Vest is offered with two ballistic protection options.
The manufacturer describes both configurations as NIJ-compliant in performance.
Type II provides a lighter protective configuration, with a stated vest weight of approximately 3.9 lb (1.77 kg).
Type III-A offers a higher ballistic protection category and weighs approximately 4.8 lb (2.18 kg).
The Ray Allen Modular Ballistic Vest is intended to protect vital organs from specified handgun-related ballistic threats.
Actual protection depends on the selected armor configuration, projectile characteristics, impact location and condition of the panels.
The manufacturer’s product description does not establish that every vest configuration has undergone independent certification as a complete canine armor system.
Durable 1000D Cordura Construction
The Ray Allen Modular Ballistic Vest features a rugged 1000D Cordura nylon outer shell.
This material is selected for its durability and resistance to demanding working environments.
Underneath, the vest incorporates a pack-cloth lining designed to make cleaning and removal of dog hair easier.
The Ray Allen Modular Ballistic Vest also uses Mil-Spec Type 8 webbing and heavy-duty fastening components.
Its construction is intended to provide dependable equipment retention while maintaining practical adjustability.
Regular inspection remains essential, particularly after intensive use or exposure to abrasive surfaces.
Removable Ballistic Armor Panels
The Ray Allen Modular Ballistic Vest incorporates removable ballistic armor panels.
VELCRO® closures allow the panels to be accessed and removed when cleaning the outer vest or arranging an appropriate replacement.
This modular construction helps simplify maintenance of the textile carrier.
The Ray Allen Modular Ballistic Vest must only be relied upon for its intended ballistic protection when the correct protective panels are installed and properly positioned.
Removing the armor panels eliminates the specified ballistic protection.
Replacement panels must be approved for the relevant vest configuration.

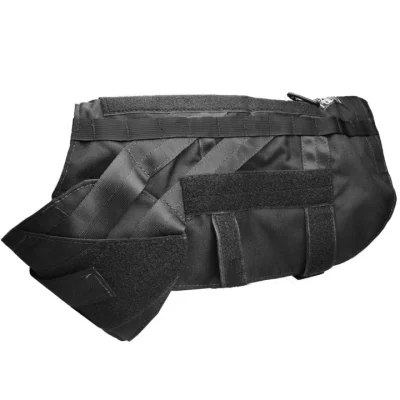

MOLLE and VELCRO® Attachment Options
The Ray Allen Modular Ballistic Vest provides practical mounting areas for compatible equipment and identification.
A VELCRO® panel approximately 4 inches wide runs along much of the upper section.
A MOLLE strip is positioned beneath this panel on each side.
The Ray Allen Modular Ballistic Vest also includes an approximately 2 × 8-inch VELCRO® area on each side for identification patches.
These features allow handlers to attach suitable accessories without modifying the vest.
Avoid overloading the vest or placing equipment where it could interfere with movement or protective coverage.

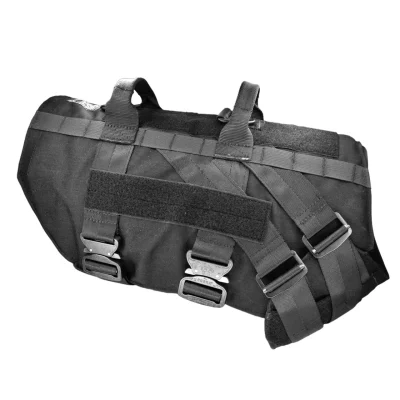

Standard and Heavy-Duty Configurations
The Ray Allen Modular Ballistic Vest is available in standard and Heavy-Duty configurations.

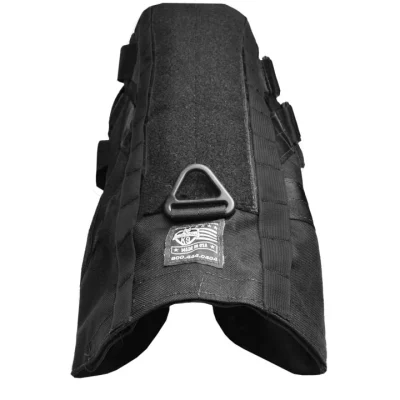

Standard versions feature heavy-duty plastic side-release buckles and a rear V-ring.

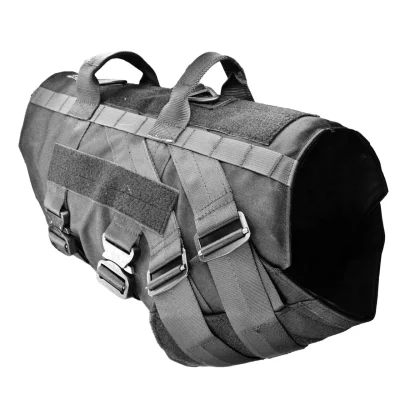

Heavy-Duty versions add:
- Two top-mounted handles
- An additional V-ring
- Metal buckles instead of plastic buckles
The Ray Allen Modular Ballistic Vest therefore offers different handling configurations to suit professional requirements.
The extra hardware on Heavy-Duty versions should not be interpreted as permission to use the vest for unsupported lifting or suspension applications.
Available Sizes and Fitting
The Ray Allen Modular Ballistic Vest is available in two sizes.
| Size | Front Girth | Rear Girth | Suggested Dog Weight |
|---|---|---|---|
| Regular | 22–30.5 in / 56–77 cm | 24.5–28 in / 62–71 cm | Up to 70 lb / 31.8 kg |
| Large | 31–36 in / 79–91 cm | 29–33 in / 74–84 cm | 70–90 lb / 31.8–40.8 kg |
The rear measurement is taken around the furthest point of the dog’s rib cage.
Measure carefully and verify that the vest provides adequate coverage without restricting breathing, shoulder movement or natural gait.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Ray Allen Manufacturing |
| Product Name | Modular Ballistic Vest |
| SKU | BV-P |
| Product Type | Protective K9 ballistic vest |
| Ballistic Options | Type II and Type III-A |
| Available Configurations | Standard and Heavy-Duty |
| Outer Material | 1000D Cordura nylon |
| Inner Lining | Pack-cloth |
| Webbing | Mil-Spec Type 8 |
| Armor Panels | Removable |
| Type II Weight | Approximately 3.9 lb / 1.77 kg |
| Type III-A Weight | Approximately 4.8 lb / 2.18 kg |
| Rear V-Ring Rating | 2,500 lb / approximately 1,134 kg |
| Standard Buckles | Heavy-duty plastic side-release |
| Heavy-Duty Hardware | Metal buckles, extra V-ring and two handles |
| Accessory Attachment | MOLLE and VELCRO® |
| Sizes | Regular, Large |
| Colors | Black, Coyote |
| Country of Manufacture | USA |
| Production | Handmade, built to order |
Important Ballistic Safety Information
The Ray Allen Modular Ballistic Vest is specialized protective equipment and must be selected according to the expected hazards and the manufacturer’s stated protection performance.
Ballistic protection is threat-specific and cannot guarantee prevention of injury or death.
Neither Type II nor Type III-A protection should be assumed to provide rifle-rated protection.
Confirm the exact ballistic performance documentation for the selected configuration before operational use.
Inspect the armor panels and carrier regularly. Do not use damaged, altered or incorrectly installed protective components.
The V-ring’s individual load rating is not a certified lifting capacity for the complete vest.
Care and Maintenance
Remove the armor panels only according to the manufacturer’s instructions.
Clean the textile carrier using suitable methods and avoid exposing ballistic inserts to water, chemicals, excessive heat or mechanical stress unless expressly permitted by the panel manufacturer.
Allow the carrier to dry completely before reassembly.
Store the vest in a clean, dry environment and inspect the protective panels for damage before use.
Ray Allen Modular Ballistic Vest at Dogpride NL
The Ray Allen Modular Ballistic Vest combines ballistic protection options, rugged Cordura construction and modular equipment attachment in one professional K9 protective system.
With removable armor panels, adjustable sizing and optional Heavy-Duty hardware, it offers a specialized solution for handlers seeking dependable protective equipment.
At Dogpride NL, we offer professional K9 equipment with an emphasis on quality, functionality and responsible product selection.
Choose the Ray Allen Modular Ballistic Vest for advanced protective construction, practical modularity and professional working-dog equipment performance.
