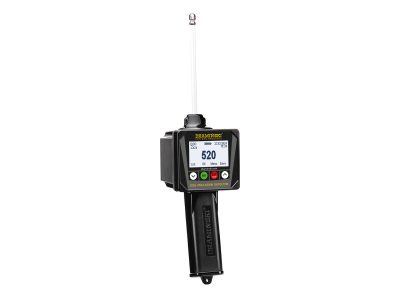

Draminski Ovulation meter

Draminski Ovulation meter

This is an excellent device for breeders who are having trouble mating female dogs effectively.

With this simple method, the breeder has the possibility to identify abnormalities in the menstrual cycle and determine the best time for mating, even if the external symptoms do not indicate this.
The device uses the relationship between variations in the electrical resistance of the vaginal mucus and the occurrence of ovulation. The measurement is easy to perform and without any danger to the animal to be examined.

The female dog optimal mating time detector has been sold at home and abroad for many years. He has been shown at a number of fairs and shows as well known and prominent as the Crufts dog show in England.
The device has already gained popularity in many countries around the world, even in the United States and Japan.

Advantages:

The determination of the best breeding time for bitches, the absence of the need to repeat the mating,
helps identify so-called “peaceful oestrus” and disturbances in the reproductive process, helps reduce costly visits to the vet, helps eliminate the stress of multiple mating attempts, reduces re-mating travel costs.

Measuring procedure:

The measurement is performed by inserting the probe into the bitch's vagina. The result is obtained after one measuring cycle. It is recommended to perform one or two measurement cycles per day.
Hold the position for 30 seconds to reach the bitch's temperature and get an accurate result. Rotate 360° and take 4 measurements using the pusher. A number of units is displayed.

The detection happens daily as the numbers increase and the optimized moment is marked by the moment when the curve drops.
Each animal has its own curve, which means that the peaks can vary from 400 to 1000 units.

The higher the values, the closer the readings should be 3 to 4 times a day.
If the maximum has been reached, coverage must take place on the first or even the second day of purchase.

It is important that the probe is thoroughly disinfected before measurement.
We recommend using an Ecolube lubricant to insert the probe.

The kit includes:

• DRAMIŃSKI DOD heat detector,
• 1 x battery type 6F-22, 9V,
• measuring board,
• carrying case with foam protection,
• instructions.

24 months warranty.

Sold in carrying case.

Technical data:

• Device weight: 260 g (with battery).
• Size: 31.0 x 7.0 x 9.0 cm.
• Probe length: 12.5 cm.
• Power supply: 1 x 9V battery, type 6F-22.
• Low Battery Indicator: Automatically indicated.
• Power consumption: about 15mA.
• Measurement control: single circuit microcomputer.
• Estimated time for continuous use with one battery: approximately 27 hours.
• Screen: LCD, 3.5 digits.
• Measuring range: 0-1990 units.
• Indication resolution: 10 units.
• Recommended operating temperature: 0°C to 50°C.
• Recommended storage temperature: 5°C to 45°C
