SCHMIDT dog trailer SH-3

3 compartment trailer with storage roof and exclusive equipment.

Standard equipment:

• Storage roof over the boxes, 18 cm deep
  Elastic handles on lid and front
  Aluminum cover frame with aluminum cover plate
  Aluminum interior lattice doors with latch closure, 20mm tubular lattice slats
  Four ventilation flaps along the entire length of the vehicle
  Ventilation hooks for all exterior doors
  Cylinder locks in all exterior doors and in the lid
  Locking system 1 key for all locks (doors and storage roof)
  Hinges made of stainless steel on all doors and flaps
  Stainless steel rivets
  Partition walls made of aluminum can be removed
  Gas struts for opening the storage roof lid and the side ventilation flaps
  Text on the side «S-Class for sporting dogs»
  Curved drawbar tube with clutch control
  Soft rubber spring axles with individual wheel suspension
  Mud flaps on request
  Reversing light
  13-wire cabling
  13-pin Euro plug
  195/60/14 wide tires for all single axles
  Jockey wheel
  Partition walls: The partition walls mounted transversely to the direction of travel are fixed. All other partitions can be deleted if necessary.

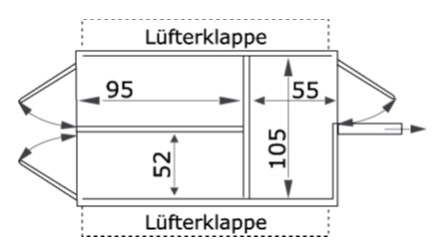

Dimensions:

Boxes: 2 x L = 99 cm, W = 52 cm, H = 69 cm
             1 x L = 105 cm, W = 52 cm, H = 69 cm

Weight:   Single axle 220 Kg
                   Tandem axle 270 Kg

Option list:

The above prices include 21%Btw, AF Factory. Transport price to Dinxperlo (Dogpride NL) €725.00.

Contact us by email info@dogpride.nl or Phone 0315655930 / 0638147051 for a full quote
